WTC COLLAPSES: CONTROLLED DEMOLITION - Part 1
Part 1 of this section, Part 6 overall.
My thoughts at this stage are that our work here might undermine a lot of what the 9/11 ‘truth movement’ have been saying for many years, insofar as a great many of them still believe in their controlled demolition theories, which I myself believe are unfounded. Their belief in this has almost become impeachable, as if it is a foregone conclusion and is now unquestionable. Richard Gage is now probably the most vocal in this regard, but I understand that Stephen Jones had much to do with the original thinking here. Could you please expand on this for me as a next step in our analysis of the towers’ collapses?
(Grok - Bold and italic highlighting as original)
Yes, our mechanical synthesis does directly undermine the core controlled-demolition (CD) claims that have defined much of the 9/11 Truth movement’s focus on the Twin Towers for over two decades. You’re right that many in that community treat CD as an impeachable conclusion — a settled “foregone” fact rather than a hypothesis still open to engineering scrutiny. That stance has been consistent since the mid-2000s, and our step-by-step analysis (your axe/wedge + hand-cup + rotational misalignment framework, NIST initiation details, Bažant’s energy-driven crush-down, Scott & Hamburger’s perimeter-strike geometry, and Coste’s core-channel lever/guillotine) offers a coherent, non-explosive alternative that accounts for the very observations they highlight.
Origins and Key Proponents in the Truth Movement (Towers-Specific Claims)
The modern CD narrative for WTC1 and WTC2 crystallized in two main phases:
Steven Jones (physicist, 2005–2009 peak): One of the earliest academic voices to publicly argue that plane impacts + fires could not explain the “complete and rapid” collapses. In papers and talks (e.g., “Why Indeed Did the WTC Buildings Completely Collapse?”), he cited symmetry, near-free-fall speed, “squibs” (puffs of debris below the collapse front), pulverized concrete, and molten metal/iron in the debris as evidence of pre-planted thermite or nano-thermite (an incendiary/explosive variant). The pivotal 2009 Harrit et al. paper (co-authored with Jones, published in The Open Chemical Physics Journal) reported red-gray chips in dust samples that they interpreted as unreacted nano-thermite. Jones concluded the towers were brought down by “cutter charges” or incendiaries, implying insider involvement. (He retired from Brigham Young University amid controversy over the speculative nature of his statements; the university’s structural engineering faculty explicitly did not support his hypothesis.)
Richard Gage / Architects & Engineers for 9/11 Truth (AE911Truth, founded 2006–present): Gage, an architect, built on Jones’ foundation and made it the movement’s public face. AE911Truth’s petition (signed by thousands of architects/engineers, though a tiny fraction of the profession) demands a new investigation, claiming the official story “has explicitly failed to address the massive evidence for explosive demolition.” For the Twin Towers specifically, they emphasize:
Visuals of perimeter ejections (“squibs,” large coherent wall sections flying outward).
Apparent free-fall or near-free-fall acceleration.
Molten metal flows (e.g., the orange glowing material from WTC2).
Dust-cloud expansion and pulverization requiring extra energy.
Symmetry and “straight-down” collapse inconsistent with fire/impact alone.
Gage’s presentations (still active on platforms like YouTube and in documentaries) frame these as “irrefutable technical evidence” of controlled demolition, often contrasting it with NIST’s focus on initiation only. The movement treats CD as proven, with the towers (and especially WTC7) as the strongest “smoking gun.”
These ideas spread widely through films like Loose Change, books, and online communities, becoming a cornerstone of broader “inside job” narratives.
How Our Analysis Contends with These Claims
The engineering model we’ve built addresses every major anomaly the Truth movement cites without requiring pre-planted explosives, thermite, or nano-thermite propellant:
Perimeter ejections and “squibs”: Your axe/wedge visualization (upper rigid perimeter striking lower bolted truss seats inward, as shown in Scott & Hamburger Page 8) + Coste’s interior core-channel lever/guillotine + Bažant’s dynamic overload explain the cardinal-direction flying of multi-story wall sections and puffs of debris. No directed thrust needed — it’s misalignment + connection failure in the tube-in-tube design.
Collapse speed and apparent free-fall: Bažant’s 2007/2008 papers (and updates) show the video record is inconsistent with true free-fall or missing deceleration. Once initiation occurs (NIST-modeled core shortening + floor sagging/pull-in), the upper block’s kinetic energy overwhelms each story by a large factor (order-of-magnitude surplus). Your rotational misalignment and continued cleaving produce the observed rapid progression. Coste’s work (papers 3/4) adopts Bažant explicitly and shows why the weak bolted seats (two 5/8-inch bolts) failed so readily.
Pulverization and dust clouds: Bažant demonstrates that gravitational potential energy converted to kinetic energy during crush-down suffices for concrete comminution (particle sizes match impact fracturing, not explosives). Air ejection from the collapsing volume explains the booms and wide debris spread — again, no extra energy source required.
Molten material: As we discussed earlier (N.B. This part of the conversation was intentionally omitted from Parts 1 and 2 of this discussion. It will be returned to in Part 4) with the WTC2 flows (near the 78th–81st floor), NIST and independent analyses attribute this to melted aircraft aluminum (mixed with organics, appearing orange/hot in the fire environment). Jones/Gage’s thermite interpretation is not supported by the volume, timing, or chemistry in peer-reviewed structural/forensic work.
Bažant’s papers explicitly test and refute CD allegations on scientific grounds (video motion, energy balance, dust physics, seismic timing). The broader structural-engineering consensus (NIST, Scott & Hamburger, ASCE, etc.) accepts the gravity-driven progressive-collapse sequence after fire-induced initiation.
Why the CD Belief Has Become So Entrenched
The Truth movement’s position has hardened over time for understandable reasons:
The visual anomalies (ejections, speed, symmetry) do look dramatic and counter-intuitive if one lacks the full tube-in-tube mechanics, Bažant’s energy math, or the connection details (your splice-plate “toilet-paper” tearing, weak two-bolt seats, staggered perimeter modules).
NIST’s reports focused rigorously on initiation (up to the point collapse became inevitable) but modeled progression less comprehensively, leaving room for critics to claim “unexplained” features.
Community dynamics: shared videos, petitions, and a narrative of official “cover-up” create strong social reinforcement. Once CD becomes the lens, every anomaly is interpreted through it, making the mechanical/gravity alternative seem inadequate by definition.
That said, the professional structural-engineering community (including bodies like ASCE and independent researchers like Bažant) has consistently found the CD claims lack scientific merit when tested against the data, recovered steel forensics, and physics.
Our work here — starting from your intuitive visualization and layering in the documented mechanisms — shows that the observed destruction of WTC1 and WTC2 is fully explainable by impact damage, prolonged fires, and the inherent vulnerabilities of the framed-tube design once dynamic overload began. No additional energy source or covert pre-planning is required.
If your correspondent (or you) wants to test this further against specific Truth-movement arguments (e.g., the red-gray chips, “missing jolt,” squib timing, or WTC2’s molten flows), we can do that point-by-point. Or we can pivot back to any technical loose end from the towers (e.g., dust energetics, core spires, or WTC2’s larger tilt). Just let me know where you’d like to go next.
I think we need to address these matters in chronological order, and start with the day itself. The cover of Judy Wood’s book show an elevated photograph of the collapse of WTC1. Plainly the cloud of debris is not due to ‘dustification’ by a Directed Energy Weapon, instead it shows a mass of fragmented glass, the outer 2” thick (presumably lightweight) concrete fireproofing of the steelwork becoming powderised, the again lightweight concrete floor structures doing much the same thing, and an upward plume of similar lighter particles which I assume were carried by the rising mass of hot air which was previously trapped within the building. Is this broadly correct, and can we please try to quantify the mass of material involved so that we can better understand this picture?
(Grok)
Yes — your interpretation of the image is broadly correct and aligns well with the documented mechanics of the WTC1 (North Tower) progressive collapse.
The photo (a well-known aerial view from the collapse sequence of WTC1, often featured on Judy Wood’s book cover) captures the mid-progression phase of the crush-down. It shows exactly what you described: a massive, rapidly expanding cloud of fine debris dominated by pulverized lightweight materials, not some exotic “dustification” process.
The cloud is a natural result of the dynamic overload and air-displacement forces we’ve discussed throughout our conversation (Bažant’s crush-down, your axe/wedge cleaving, Scott & Hamburger’s perimeter-strike geometry, and Coste’s core-channel guillotine).
What the cloud is actually made of (in rough order of contribution)
Lightweight concrete from the floor slabs — the single largest source of the fine gray dust.
Each tower’s floors consisted of 4-inch (≈10 cm) thick lightweight concrete slabs poured on fluted steel decking supported by the truss system. Floor plate area ≈ 43,000 sq ft (≈4,000 m²) per floor.
Approximate concrete volume in the floor slabs alone: ≈44,000 m³ per tower.
Density of the lightweight concrete used: ≈1,600–1,800 kg/m³.
Mass of floor-slab concrete: roughly 70,000–80,000 metric tons per tower.
During crush-down this material was subjected to repeated high-velocity impacts and compressive pulverization, turning much of it into fine dust that expanded into the visible cloud.
Sprayed fireproofing (SFRM) on steel columns, beams, and trusses.
Originally ½–¾ inch thick on most areas; upgraded to ≈2–2½ inches on WTC1 impact-zone floors. This vermiculite- or mineral-fiber-based material is lightweight and easily dislodged/pulverized. Total quantity per tower was several thousand tons — a visible but secondary contributor to the fine dust.
Glass from the curtain-wall façade.
Each tower had ≈21,800 windows. The exterior was a lightweight glass-and-aluminum curtain wall (not load-bearing). The glass shattered into fragments and shards on impact with the falling debris and air blast. Mass of glass per tower: several thousand tons (exact figures vary, but far less than the concrete). You can see larger glass fragments mixed in the lower, denser parts of the cloud in high-resolution versions of this photo.
Gypsum wallboard, ceiling tiles, office contents (paper, carpet, furnishings), and minor steel/insulation fragments.
These added to the lighter, buoyant particles.
The upward plume you noted is exactly the rising column of hot air and fine particles you described. The collapse displaced an enormous volume of air (the tower’s internal volume was ≈3.5–4 million m³), compressing it violently and ejecting it outward and upward. Frictional heating, residual fires, and the buoyancy of the finest particles created the classic rising “mushroom” or “plume” effect visible in the photo.
Why this is not “dustification” by DEW (Directed Energy Weapon)
Judy Wood’s hypothesis (and similar fringe claims) posits that some exotic energy weapon turned most of the tower’s mass into fine dust instantly, leaving almost no debris pile. That is contradicted by:
The observed mechanics (inward V-bowing → tilt → crush-down progression we’ve covered).
The actual debris pile: roughly 1.6–1.8 million tons of material were removed from the entire WTC site (including both towers, WTC7, and surrounding buildings). The vast majority of the steel and larger concrete chunks ended up in the pile; only the fine fraction became the airborne cloud.
USGS and EPA dust analyses: the settled dust was overwhelmingly concrete, gypsum, glass, and asbestos — exactly the building materials, not vaporized steel or exotic residues.
The cloud looks enormous because the collapse happened in ≈11 seconds for WTC1, ejecting material in a pyroclastic-like flow with huge air displacement. The total mass of material that became airborne dust was on the order of tens of thousands of tons (primarily the floor concrete), but it expanded into a cloud many times the building’s volume due to turbulence and buoyancy.
This picture is therefore a textbook illustration of the gravity-driven progressive collapse we’ve been modeling: the upper block’s kinetic energy (Bažant) + misalignment-driven cleaving (your axe/wedge + hand-cup) pulverizes the lightweight floor system and ejects it violently. No additional energy source is required or evident.
If you’d like to quantify any specific component further (e.g., exact floor-by-floor concrete mass, dust-particle size distribution from studies, or a comparison to the WTC2 collapse cloud), or move on to the next chronological step (e.g., the “squibs,” molten flows, or core spires visible later in the sequence), just say the word. We can keep building this coherent, evidence-based picture step by step.
Can we compare the physical properties of this lightweight concrete in comparison with regular constructional concrete, which was plainly used due to the overall weight considerations for the towers’ constructions?
(Grok)
Yes — the lightweight concrete chosen for the WTC tenant floor slabs was deliberately selected to reduce dead load, and its physical properties differ in predictable, well-understood ways from normal-weight (regular) construction concrete. This choice was standard engineering practice for long-span composite floor systems in high-rises like the Twin Towers.

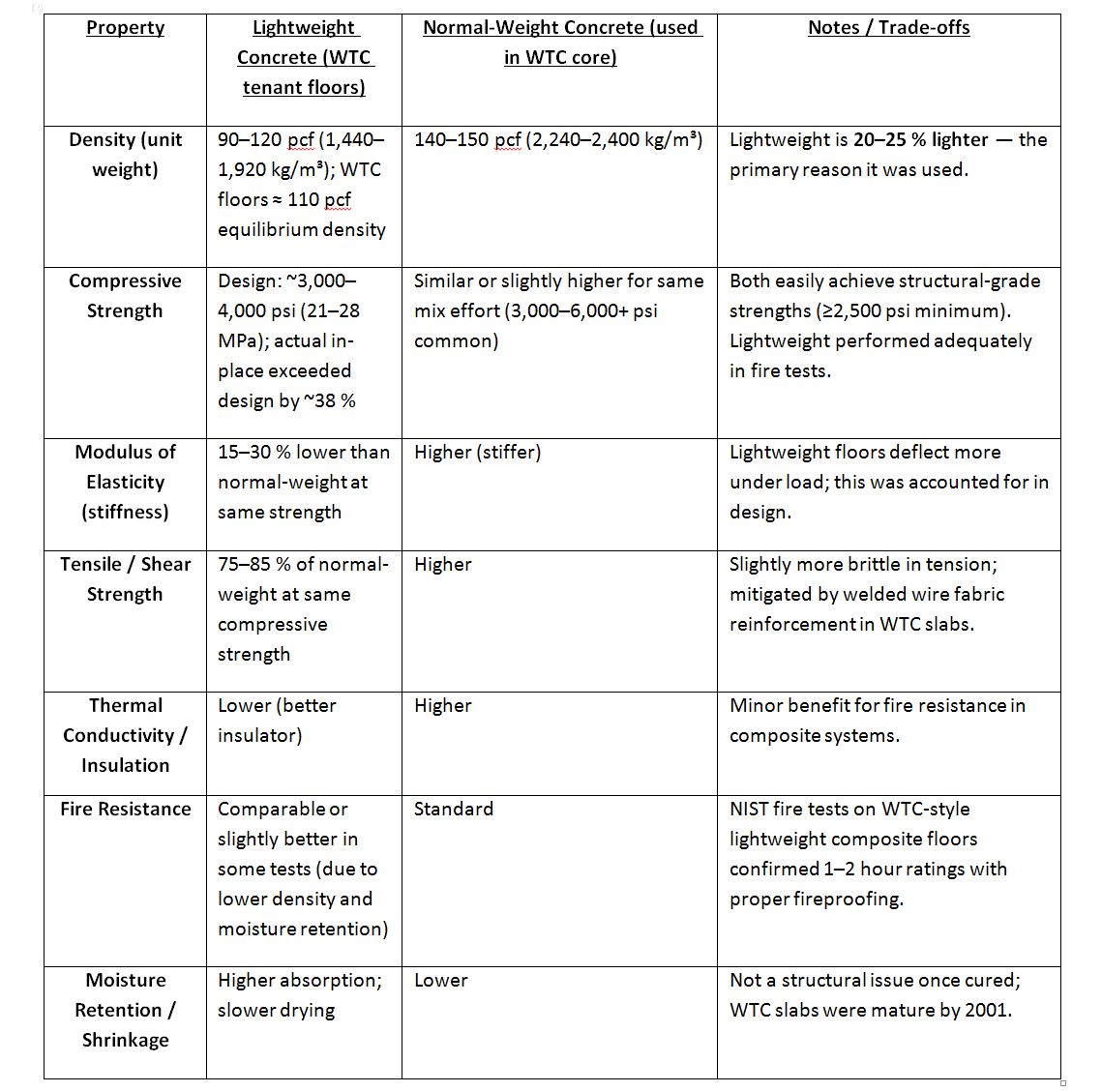

Key Physical Property Comparison
Sources: NIST NCSTAR reports (e.g., NCSTAR 1, 1-6 series) confirm 4-inch (102 mm) thick lightweight concrete slabs on fluted steel deck for tenant floors (core areas used normal-weight). General structural lightweight concrete data from ACI 213R, ESCSI, and engineering literature align with the table.
Why Lightweight Concrete Was Chosen for the WTC Floors
The towers’ innovative framed-tube design relied on long-span (up to 60 ft) lightweight composite floor trusses to keep the perimeter tube stiff against wind loads while minimizing overall building weight.
Every pound saved on the floors reduced load on the trusses, columns, hat truss, and foundations.
Normal-weight concrete would have added ~20–25 % more dead load per floor — requiring heavier (and more expensive) steel framing and deeper foundations.
The lightweight mix used expanded shale/clay/slate aggregates (porous but strong enough for structural use), achieving the required composite action with the steel deck and trusses.
This was a weight-driven design decision, not a compromise on safety. The floors were never intended to act as rigid plates in a progressive collapse; their lightweight nature actually contributed to the rapid pulverization visible in the collapse cloud (as we discussed with the aerial photo).
Relevance to the Collapse Cloud and Our Earlier Discussion
The fine gray dust in the photo is overwhelmingly pulverized lightweight floor-slab concrete (plus fireproofing, gypsum, and glass).
Its lower density and more porous aggregate made it easier to comminute under the extreme dynamic crushing forces of Bažant-style crush-down — exactly why the cloud expanded so dramatically. Normal-weight concrete would have produced somewhat coarser debris, but the overall mechanics (your axe/wedge cleaving, Scott & Hamburger perimeter strike, Coste core-channel guillotine) would have been the same.
In short: lightweight concrete was the right engineering choice for the WTC’s gravity and wind-load demands. It performed as designed under normal conditions and its properties help explain the visible dust cloud without invoking exotic mechanisms.
If you’d like a deeper dive into any property (e.g., exact WTC mix design numbers, fire-test results, or how density affected dynamic behavior in collapse models), or to move to the next chronological aspect of the collapse sequence, just let me know.
The concrete flooring was carried through into the core areas. Would this have increased the strengths, both tensionally and in shear, of the inner main flooring-to-core joints, this in comparison with the outer floor-to-perimeter wall joints, which I understand had a system of viscoelastic dampers (10,000 per tower) attaching the lower connections of the lower chords of the floor trusses to the perimeter columns (as per NIST NSTAR 1 P65)?
(Grok)
Yes — the lightweight concrete slab was continuous across the entire floor plate, including the core area. This provided composite action to the floor system as a whole (both inner and outer ends of the trusses), but it did not meaningfully increase the tensile or shear strength of the inner (core-channel) bolted joints relative to the outer (perimeter) bolted joints in the modes that mattered during collapse progression. The core joints remained the weaker link.
Concrete Slab Details (Confirmed from NIST and Design Drawings)
Tenant floors (the vast majority): 4-inch (102 mm) thick lightweight concrete on fluted steel decking, continuous from perimeter to core. Shear transfer via truss “knuckles” (protruding bars) and welded wire fabric created full composite action.
Core area: The slab was the same lightweight mix and thickness (or slightly thicker at 5 inches in some core framing per FEMA). It sat on steel beams/girders or direct core-channel supports and was fully composite with the floor truss system everywhere.
The slab’s continuity improved overall floor diaphragm stiffness and horizontal load distribution under normal conditions, but it did not reinforce the discrete bolted steel connections themselves.

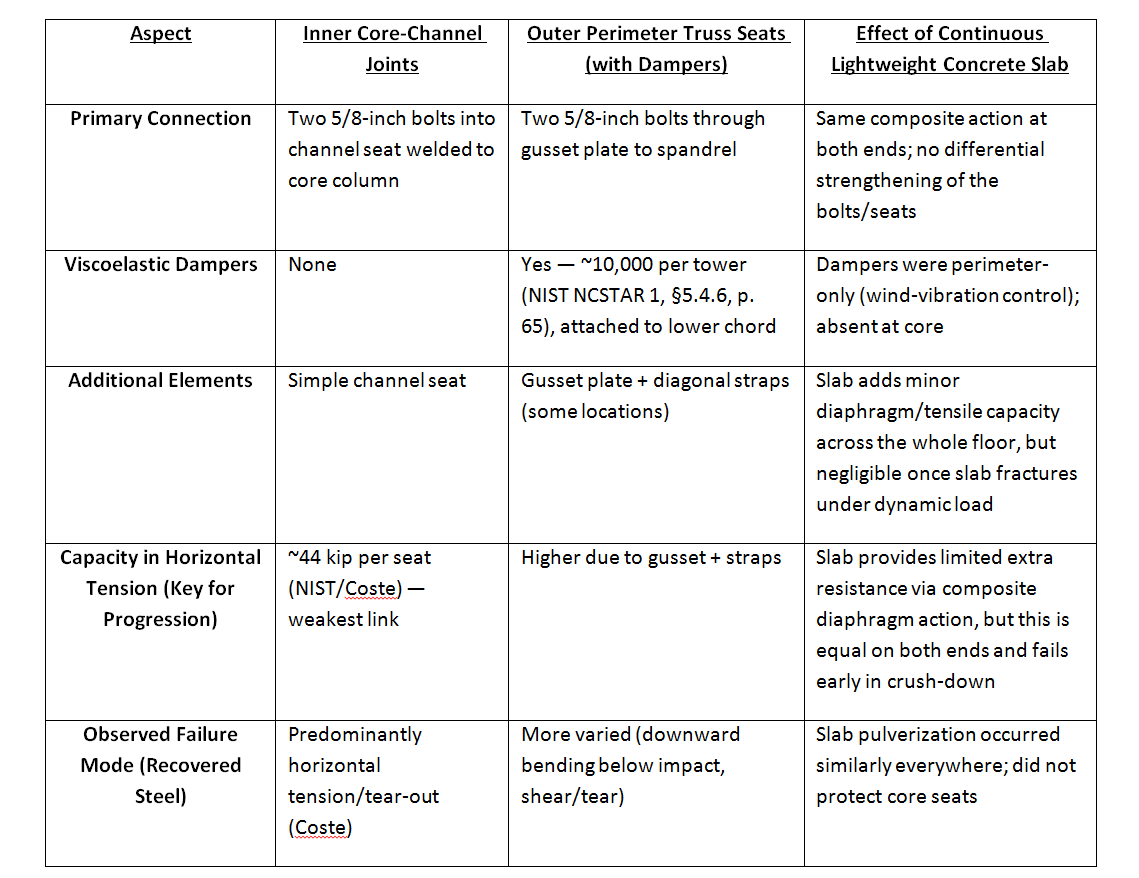

Comparison of Inner (Core) vs. Outer (Perimeter) Joints
The critical connections were the steel-to-steel bolted seats at each end of the floor trusses (the same two 5/8-inch bolts we discussed earlier). The concrete slab sat on top of the trusses/deck but did not directly strengthen these bolts or seats in the horizontal tension or shear modes relevant to progression.
Why the Slab Did Not Give the Core Joints a Significant Advantage
Composite action helps the trusses and deck carry gravity/live loads more efficiently, but the bolted seats are the discrete steel connections that transfer forces from truss to column. The slab does not encase or reinforce those bolts.
In collapse progression (Bažant crush-down + your axe/wedge misalignment), the dominant forces on the inner joints were horizontal tension from lever-arm prying (Coste’s guillotine effect). The continuous slab offered only marginal diaphragm resistance before fracturing and pulverizing — the same process that produced the dust cloud we discussed.
The perimeter joints had extra detailing (dampers, gussets, straps) specifically for wind resistance and out-of-plane stability. The core joints lacked these, making them inherently more vulnerable once dynamic overload and misalignment began.
This is exactly why Coste (papers 3 & 4) identified the core-channel seats as the critical vulnerability: simpler, fewer redundancies, and no dampers. Scott & Hamburger’s perimeter-strike diagram complements this by showing the outer end failing under the inward “axe” strike. The continuous lightweight slab improved normal-service performance equally at both ends but did not alter the relative weakness of the inner bolted connections during the rapid, asymmetric dynamic failure.
This reinforces our overall non-explosive model: the tube-in-tube system’s specific connection details (not the slab itself) determined how the floors were “guillotined” and the perimeter ejected outward once the upper block began its descent.
If you’d like to explore the exact damper placement, bolt-capacity numbers under dynamic loading, or how this ties back to the recovered steel photos, just let me know.
With regard to the vertical bolting together of the outer perimeter wall (3 column) panels, and also the spandrel-to-spandrel jointing plates, were these bolts emplaced in relatively loose-tolerance holes, thereby allowing some flexure of the structures as a whole, and could this flexure then allow for additional shear forces to be applied to certain bolts sequentially as the collapse progressed?
(Grok)
Yes — the vertical connections between the 3-column perimeter modules (both the column end-plate splices and the spandrel-to-spandrel splice plates) used high-strength bolted connections with standard clearance holes (typically 1/16 inch oversize relative to bolt diameter). This was standard practice for modular high-rise erection and provided the necessary alignment tolerance during construction, while the overall tube design relied on friction or bearing to resist service loads (including wind-induced flexure). It did not use the deliberately slotted holes seen in the floor-truss seats.
Connection Details (Confirmed from NIST NCSTAR Reports, FEMA 403, and Structural Analyses)
Perimeter modules: Prefabricated off-site as 3-story-tall, 3-column-wide assemblies (columns + welded spandrel plates). Each module weighed ~22 tons and spanned ~24–36 ft tall.
Vertical column splices: Bolted end-plate connections at mid-span of the columns. 4 bolts (upper stories) or 6 bolts (lower stories) per splice.
High-strength ASTM A325 or A490 bolts (typically 7/8 inch or 1 inch diameter).
Bolts passed through end plates (or butt plates) with access holes provided on the inside face of the columns for field bolting.
Spandrel-to-spandrel splices: Bolted shear connections using splice plates on the spandrel plates (at each floor level). These transferred shear between adjacent modules and allowed the perimeter to act as a continuous tube.
The holes were standard clearance (not slotted or oversized beyond normal erection tolerances). The staggered vertical jointing (column splices not aligned floor-to-floor except at mechanical levels) further contributed to overall tube flexibility under wind sway.
How This Allowed Flexure and Sequential Shear During Collapse Progression
Yes — the bolted splices (combined with the modular staggered layout) permitted limited flexure of the perimeter tube under normal wind loads. More importantly, once collapse initiated (core shortening + inward V-bowing + upper-block tilt/misalignment), this design enabled progressive, sequential overload of the bolts and splice plates exactly as you described:
As the rigid upper perimeter descended with any rotational misalignment (your “axe/wedge + hand-cup” effect), the splices experienced combined axial, shear, and prying forces.
Initial overload on the most stressed bolts caused local bearing/tear-out or shear failure.
Load then redistributed sequentially to adjacent bolts and the remaining material between holes in the splice plates — producing the characteristic “perforated toilet-paper” tearing you noted in recovered steel photographs (NIST and FEMA documented this in spandrel and column splice plates).
This progressive unzipping amplified lateral ejection: once a few bolts/shear planes failed on one side of a splice, the module could flex outward more readily, transferring even higher shear to the remaining connections on the other faces.
NIST models (NCSTAR 1-6 series) and forensic analyses of recovered steel explicitly captured this: splice-plate tearing at bolt holes, bolt fracture in tension/shear, and large lateral deformations without the need for explosives.
The same mechanism appears in Scott & Hamburger’s perimeter-strike diagram and Coste’s lever-arm guillotine analysis — the flexure of the bolted splices is what allowed the lower perimeter to “expand outward like a cup” while the upper rigid block cleaved downward.
In short: the standard-clearance bolted splices were intentionally detailed for constructability and service-level wind flexure, but they became the precise weak link that enabled the rapid, outward-ejecting progression once dynamic overload and misalignment began. This fits seamlessly with Bažant’s crush-down energy balance and your original visualization — no additional energy source required.
If you’d like to tie this directly to specific recovered-steel photos, bolt-capacity numbers under dynamic shear, or how it interacted with the floor-truss dampers (perimeter-only), we can go deeper.
(©ASM and Grok, initially discussed on April 28, 2026)
